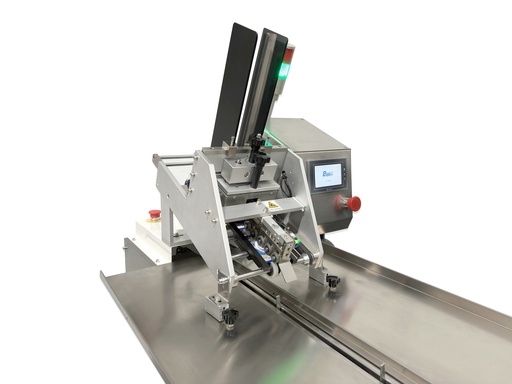

CF1180 Automated Card Feeder System - Insert Card
Estimated Paper/Card Size: W 3" x L 6"
Paper Thickness Range: 0.0024-0.19685”
Max Speed (ft/min): 164'/min
Min Feeding Size (W x L): 2.36 x 4.33”
Max Feeding Size (W x L): 11.81 x 11.81”
Infeed Hopper Stack Height: Max 15.7”
Power: 220V/0.5kw

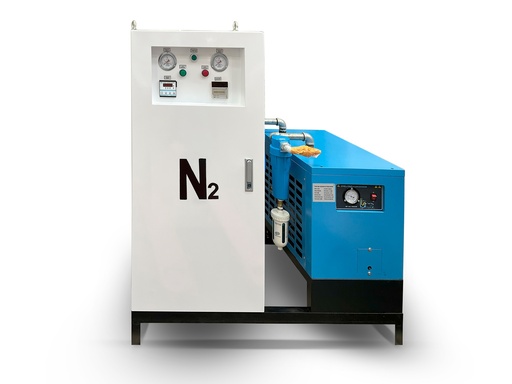

Nitrogen Purity: ≥99.5%
Power: 208-240V, 50HZ
Nitrogen Pressure: 15 psi - 94 psi
Refrigeration Dryer Motor: 7.5 HP
Refrigeration Dryer Output: 42 cu ft/ min

Diameter: 36"

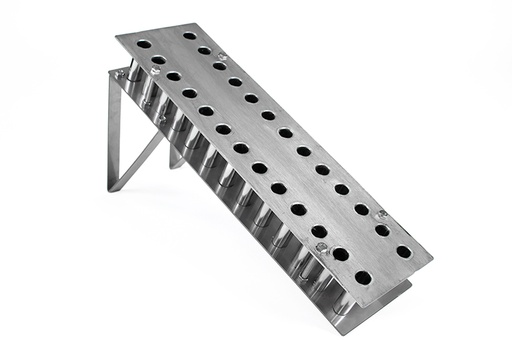

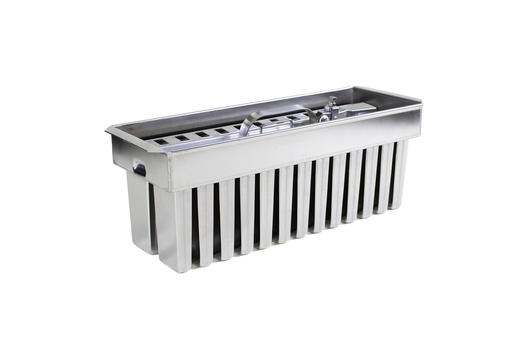

Top Cavity Size: 0.744" x 1.956"
Bottom Cavity Size: 2.224" x 0.905"
Number of Cavities: 26 (2 rows of 13)

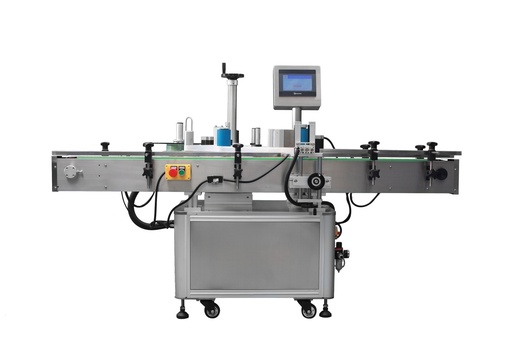

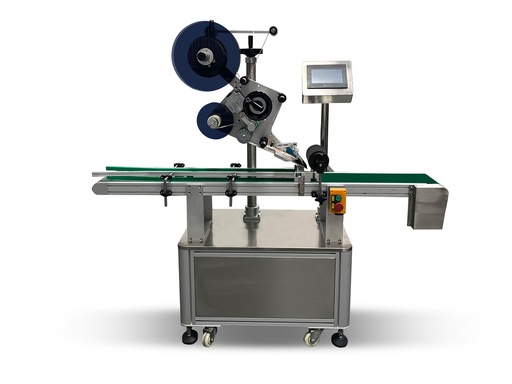

Machine Type: Label Applicator Machine
Full Touch Screen Operation with PLC Controller
Automatic Fault Alarm
Automatic Label Detection and Position Adjustment
High Precision Small Inertia Step Motors Provide Precise Label Positioning
Low Wear Emery Rollers
Quick Label Changeovers
Can be Integrated with New or Existing Production Lines or be Linked to Feeding Equipment
Labeling Speed: 30-150 Labels Per Minute
Applicable Label Size: Min W 0.79” x L 0.79” Max W 2.36” x L 11.81”
Labeling Accuracy: ± 1mm (Does not include product and label errors)
Voltage: 220V, 50/60Hz
Machine Size: 13.82” x 8.03” x 16.93”
Options: Transparent Label Sensor

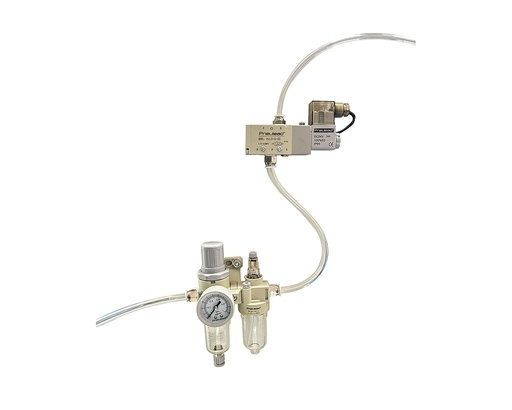

Gas Regulator
Gas Control Valve
Gas Flush Tubing Assembly
Gas Flush Support Rail

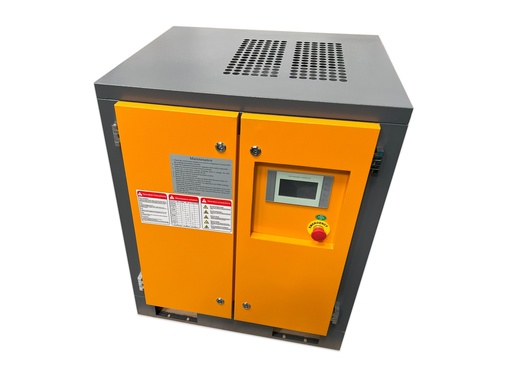

Power: 7500 watts
Motor Power: 10hp
Pressure: PSI
Air Flow: CFM
Outlet Diameter: "
Size: "
Weight: lbs
